400G QSFP-DD ZR+ Coherent Transceiver

400G QSFP-DD ZR+ Coherent Transceiver

0.0/5 rating (0 votes)

Description

400G QSFP-DD ZR+ Coherent Transceiver

Description
The 400G QSFP-DD ZR Transceiver is a high performance, cost effective module for optical data communication applications from 100G to 400G. The 400G QSFP-DD ZR+ is designed to 100G/200G long haul and 300G/400G Metro IP over DWDM applications without inline chromatic dispersion compensation.
The 400G QSFP-DD ZR+ is a C-Band optical frequency tunable coherent optical module, combines 7nm coherent DSP ASIC functionality with best in class ultra-narrow line-width tunable lasers, high speed modulators and high responsively coherent receivers to deliver high performance at 100G DP-QPSK / 200G DP-QPSK / 300G DP-8QAM / 400G DP-16QAM modulation format. With one VOA inside the TX optical path the out output optical power has 4dB attenuation window.
The 400G QSFP-DD ZR+ coherent transceiver Compliant with the OIF QSFP-DD MSA. Digital diagnostics functions are available via an I2C interface as specified by the QSFP-DD MSA. Mechanical dimensions, connectors and footprint conform to QSFP-DD MSA. The module is 18.35mm x93.26mmx8.50mmin size and hot pluggable by 76 PIN PAD and host connector.

Features
¡ñ Compliant with QSFP-DD MSA, Type 2B package
¡ñ Compliant with Open ZR+ MSA and OIF 400ZR MSA, support OFEC and CFEC FEC
¡ñ Line rate 100G/200G/300G/400G
¡ñ Client rate 1/2/3/4x100GbE or 1x400GbE
¡ñ C-band tunable, supports 100/75/50GHz grid spacing, support 0.1GHz fine turning
¡ñ TX VOA inside, with 4dB attenuation window
¡ñ Support ingress LF hold-off time configure
¡ñ Support hitless firmware upgrade

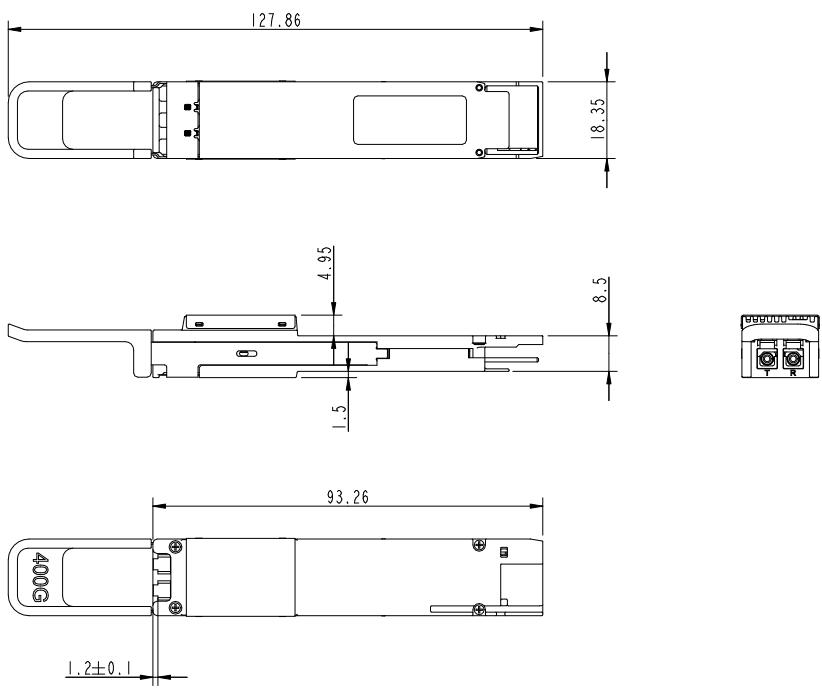

¡ñ Compact size (18.35 mm x 93.26 mm x 8.50 mm)
¡ñ Duplex LC connector
¡ñ Operating case temperature: 0¡æ to 75¡ãC
¡ñ Single 3.3 V power supply
¡ñ Typical power consumption 21W (400GbE),maximum power consumption 22.5W(400GbE)
¡ñ RoHS 2 compliant

Applications
¡ñ Edge DCI with extended Reach or with OLP protection
¡ñ IP Over Metro or Long Haul DWDM

Compliance
¡ñ Open ZR+ MSA 2.0 and OIF-400ZR-02.0
¡ñ OIF-CMIS-05.2
¡ñ IA OIF-C-CMIS-01.2
¡ñ QSFP-DD-Hardware-Rev6.3
¡ñ IEEE Std 802.3-2018

Absolute Maximum Ratings
Table1-Absolute Maximum Ratings

Parameter

Symbol

Min.

Typ.

Max.

Unit

Note

Storage temperature

Ts

-40

85

¡æ

Power supply

Vcc

-0.3

3.3

3.6

V

not damaged

Relative humidity

RH

5

85

%

Non-condensing

Receiver damage threshold

PRdmg

10

dBm

Total optical power

ESD Sensitivity

1000

V



Recommended Operating Conditions
Table2-Recommended Operating Conditions

Parameter

Symbol

Min.

Typ.

Max.

Unit

Note

Operating Case Temperature

TC

0

75

¡æ

Power supply voltage

VCC

3.135

3.3

3.465

V

ICC

7.2

A

Note1

Maximum sustained peak Current(<500ms)

7.4

A

Maximum Instantaneous peak current(<50us)

9

A

Electro-Static discharge

ESD

1000

V

Power Consumption(400ZR+)

PD

21

22.5

W

Note1

Relative humidity

RH

15

85

%

Client Mode

400G (400ZR)

1 x 400GAUI-8

4 x 100GAUI-2

400G (400ZR+)

1 x 400GAUI-8

4 x 100GAUI-2

300G (300ZR+)

3 x 100GAUI-2

200G (200ZR+)

2 x 100GAUI-2

2 x CAUI-4

Note2

100G (100ZR+)

1 x 100GAUI-2

1 x CAUI-4

Note2

Transmissi on

Distance

400G (OIF 400ZR app code 0x01)

120

Km

400G (OIF 400ZR app code 0x02)

30~40

400G (400ZR+)

450

300G (300ZR+)

600

200G (200ZR+)

1000

100G (100ZR+)

2000

Power Supply Noise

Vrip

1%

DC-1MHz

2%

1-10MHz

Notes
[1]  In 400GbE mode, the typical power consumption is 21W and the maximum power consumption is 22.5W .When switching to    4¡Á100GbE mode , the typical power consumption will be 22W and the maximum power consumption will be 23W, the current will also change accordingly.
[2]  Not tested in standard PN.   Will be supported upon customer request.

Optical £¬Electrical Characteristic
Tested under recommended operating conditions, unless otherwise noted Table3-Transmitter Operating Characteristic-Optical £¬Electrical

Parameters

Unit

Min.

Type

Max.

Note

Modulation format

400G

ZR400-CFEC-16QAM

CFEC FEC, NCG 10.8dB

ZR400-OFEC-16QAM

OFEC FEC, NCG 11.6dB

300G

ZR300-OFEC-8QAM

200G

ZR200-OFEC-QPSK

100G

ZR100-OFEC-QPSK

Baud Rate

400G

GBd

59.843750000¡À20ppm

400ZR,SFF-8024        Media        ID 3Eh/3Fh

60.138546798¡À20ppm

400ZR+,SFF-8024 Media ID 46h

300G

60.138546798¡À20ppm

300ZR+,SFF-8024 Media ID 47h

200G

60.138546798¡À20ppm

200ZR+,SFF-8024 Media ID 48h

100G

30.069273399¡À20ppm

100ZR+, SFF-8024 Media ID 49h

Transmitter frequency range

THz

191.3

196.1

For   OIF 400ZR app code 0x02 the frequency is fixed at 193.7THz and not configurable.

Flexible DWDM Grid

GHz

3.125

Frequency Fine Tuning range

GHz

-5

5

bright tuning

Frequency Fine Tuning step

GHz

0.1

Laser frequency accuracy

GHz

-1.8

1.8

TX spectral Upper Mask

(GHz,dB )

(30.0,0.0)

(37.0,-10.0)

(39.2,-15.0)

(40.4,-20.0)

Refer to OIF-400ZR-02.0 13.3.201a Refer to openzrplus_2p0 11.4.10

TX spectral Lower Mask

(GHz,dB )

(30.0,-9.0)

(31.3,-20.0)

(31.3,-3

Refer to OIF-400ZR-02.0 13.3.201b Refer to openzrplus_2p0 11.4.10

5.0)

Transmitter laser disable time

ms

100

Transmitter wavelength switching time

s

60

Transmitter laser enable time

s

10

Tx output power

400G

dBm

-10

-6

At Programmed Output Power Max,

Transmit output power over

wavelength, temperature, and aging.

300G

dBm

-10

-6

200G

dBm

-9

-5

100G

dBm

-8

-4

Transmit Output Power at 400G ZR Gray

dBm

-9

-6

For OIF 400ZR app code 0x02

Transmit Output Power Adjustable Range

400G 300G

dBm

-13

-9

The absolute accuracy is ¡À1dB

For OIF 400ZR app code 0x02 the output power is not configurable.

Transmit Output Power Adjust step

dB

0.1

Optical power setting accuracy

dB

-1

1

Diff between setting and reporting

Output power monitor accuracy

dB

-1

1

Power stability

dB

-0.5

0.5

At fixed wavelength, room temp

-1

1

At fixed wavelength

Total output power with Tx disabled

dBm

-20

Total output power during wavelength switching

dBm

-20

Transmitter reflectance

dB

-20

Looking into the Tx

Inband (IB) OSNR

dB

40

Out-of-band (OOB) OSNR

dB

35

Lorentzian linewidth

kHz

300

Tx and LO

Relative intensity noise

dB/Hz

-140

Mean I-Q amplitude imbalance

dB

1

Transmitter polarization dependent power

dB

1.5

DC I-Q offset (mean perpolarization)

dB

-26

I-Q instantaneous offset

dB

-20



Table4- Receiver Operating Characteristic-Optical

Parameters

Unit

Min.

Type

Max.

Note

Modulation format

400G

ZR400-CFEC-16QAM

CFEC FEC,Net Coding Gain(NCG) 10.8dB,Theoretical Max Pre-FEC BER 1.25E-2

ZR400-OFEC-16QAM

OFEC FEC,Net CodingGain(NCG)  11.6dB £¬Theoretical

300G

ZR300-OFEC-8QAM

200G

ZR200-OFEC-QPSK

Max Pre-FEC BER 2.0E-2

100G

ZR100-OFEC-QPSK

Baud Rate

400G

GBd

59.843750000¡À20ppm

400ZR,SFF-8024 Media ID 3Eh/3Fh

60.138546798¡À20ppm

400ZR+,SFF-8024 Media ID 46h

300G

60.138546798¡À20ppm

300ZR+,SFF-8024 Media ID 47h

200G

60.138546798¡À20ppm

200ZR+,SFF-8024 Media ID 48h

100G

30.069273399¡À20ppm

100ZR+,SFF-8024 Media ID 49h

Frequency offset  between  received carrier and LO

GHz

-3.6

+3.6

Input power range

400G

dBm

-12

0

Signal power,OSNR>26dB,400ZR

-12

0

Signal power,OSNR>24dB, 400ZR+

300G

-15

0

Signal power,OSNR>21dB, 300ZR+

200G

-18

0

Signal power, OSNR>16dB, 200ZR+

100G

-18

0

Signal power, OSNR>12.5dB,100ZR+

OSNR Tolerance

400G

dB/0.1n m

26

400ZR

Measured back-to-back  with short optical channel

24

400ZR+

300G

21

300ZR+

200G

16

200ZR+

100G

12.5

100ZR+

RX sensitivity

400G

dBm

-20

400ZR

Inband (IB) OSNR ¡Ý 34dB, OIF 400ZR app code 0x02

-22

400ZR+

Point to point

non-damaging input power

dBm

10

Total power

Optical input power monitor accuracy

dB

-2

2

Total power

MAX Pre-FEC BER

0.017

0.020

Chromatic dispersion tolerance

400G

ps/nm

2,400

400ZR

Tolerance to CD with ¡Ü 0.5 dB penalty to OSNR sensitivity when change in SOP  is ¡Ü  1rad/ms

20,000

400ZR+

300G

40,000

300ZR+

200G

50,000

200ZR+

100G

100,000

100ZR+

CD monitor accuracy

ps/nm

-200

+200

DGD tolerance

400G

ps

33

400ZR

OSNR penalty<0.5dB

66

400ZR+

300G

83

300ZR+

200G

83

200ZR+

100G

100

100ZR+

DGD monitor accuracy

ps

-15

15

0~40ps for 400ZR
0~100ps for 400/300/200/100ZR+

Peak PDL tolerance

dB

3.0

Tolerance to peak PDL with ¡Ü1.3dB additional OSNR penalty when change in SOP is ¡Ü1 rad/ms

3.5

Tolerance to peak PDL with ¡Ü1.8dB additional OSNR penalty when change in SOP is ¡Ü1 rad/ms

Tolerance to change in SOP

krad/s

50

With ¡Ü0.5dB additional OSNR penalty over all PMD and PDL values

Optical return loss

dB

20

Optical reflectance at Rx connector input.

Optical Rx_LOS Assert Threshold

400G

dBm

-28

-26

-24

OIF 400ZR app code 0x01 £¬0x02, 0x03,

400G

-30

-28

-26

400ZR+

300G

-32

-30

-28

200G

-32

-30

-28

100G

-32

-30

-28

Optical Rx_LOS Hysteresis

dB

1

1.5

2.5

Optical input power transient tolerance

dB

-2

2

Tolerance to change in input power with<0.5dB penalty to OSNR tolerance.

The 20% to 80% rise/fall times for the input power change shall be no faster than 50 ?s.

Service recovery time

ms

40

The transmitter and receiver comply with the 400GAUI-8 C2M and CEI-56G-VSR-PAM4 electrical specification, electrical interface definitions refer to IEEE Std 802.3-2018 Annex 120E. The data lines are AC-coupled and terminated in the module per the following figure from the QSFP-DD MSA.

Table5-Operating Characteristic-Electrical highspeed

Parameter

Symbol

Min

Max

Unit

note

400GAUI-8 C2M and 100GAUI-2 C2M Electrical Characteristics

Transmitter(module output)

Signaling Rate, each lane

26.5625 ¡À 100 ppm

GBd

PAM-4

AC common-mode output voltage (RMS)

RMS

17.5

mV

Differential Voltage pk-pk

Vin, pp

750

900

mV

Near-end ESMW (Eye symmetry mask width)

0.265

UI

Near-end Eye height, differential

70

mV

Far-end ESMW

0.2

UI

Far-end Eye height£¬differential

30

mV

Far-end pre-cursor ISI ratio

-4.5

2.5

%

Differential output return loss

Equation (83E-2)

IEEE Std 802.3-2018 Annex 120E

Common  to   differential   mode   conversion return loss

Equation (83E-3)

IEEE Std 802.3-2018 Annex 120E

Differential termination mismatch

-

10

%

At 1 MHz

Transition time(20% to 80%)

Trise/Tfall

9.5

Ps

20% to 80%

DC common mode voltage

Vcm

-350

2850

mV

Receiver (module input)

Signaling rate per lane

26.5625 ¡À 100 ppm

GBd

PAM-4

Differential pk-pk input voltage tolerance

Vout, pp

900

mV

Differential input return loss (min)

Equation (83E¨C5)

IEEE Std 802.3-2018 Annex 120E

Differential  to  common-mode  input  return loss (min)

Equation (83E¨C6)

IEEE Std 802.3-2018 Annex 120E

Differential termination mismatch

10

%

Module stressed input test

See 120E.3.4.1

IEEE Std 802.3-2018 Annex 120E

Single-ended voltage tolerance range (min)

-0.4

3.3

V

DC common mode voltage(min)

-350

2850

mV

CAUI-4 C2M Electrical Characteristics

Transmitter(module output)

Signaling Rate, each lane

25.78125 ¡À 100 ppm

GBd

NRZ

AC common-mode output voltage (RMS)

RMS

17.5

mV

Differential Voltage pk-pk

Vin, pp

750

900

mV

Eye width

UI

0.57

Eye height, differentia

mV

228

Vertical eye closure

dB

5.5

Differential output return loss

Equation (83E-2)

IEEE Std 802.3-2018 Annex 83E

Common  to   differential   mode   conversion return loss

Equation (83E-3)

IEEE Std 802.3-2018 Annex 83E

Differential termination mismatch

-

10

%

At 1 MHz

Transition time(20% to 80%)

Trise/Tfall

12

Ps

20% to 80%

DC common mode voltage

Vcm

-350

2850

mV

Receiver (module input)

Signaling rate per lane

25.78125 ¡À 100 ppm

GBd

NRZ

Differential pk-pk input voltage tolerance

Vout, pp

900

mV

Differential input return loss (min)

Equation (83E¨C5)

IEEE Std 802.3-2018 Annex 83E

Differential  to  common-mode  input  return loss (min)

Equation (83E¨C6)

IEEE Std 802.3-2018 Annex 83E

Differential termination mismatch

10

%

IEEE Std 802.3-2018 Annex 83E

Module stressed input test

See 83E.3.4.1

Single-ended voltage tolerance range (min)

-0.4

3.3

V

DC common mode voltage(min)

-350

2850

mV



Table6-Operating Characteristic-Electrical Lowspeed

Parameters

Symbol

Unit

Min.

Max.

Note

SCL and SDA

VOL

0

0.4

V

IOL(max)=3mA for fast mode,  20ma for Fast-mode plus

VOH

Vcc-0.5

Vcc+0.3

V

SCL and SDA

VIL

-0.3

Vcc*0.3

V

VIH

VCC*0.7

Vcc+0.5

V

Capacitance  for  SCL and SDA I/O signal

Ci

14

pF

Total   bus   capacitivel oad for SCL and SDA

Cb

100

pF

For 400kHz clock rate, use 3.0 k Ohms pull up resistor max. For 1000kHz clock rate, refer to Figure 45 (QSFP-DD-Hardware-rev5p0)

200

pF

For 400kHz clock rate, use 1.6 k Ohms pull up resistor max. For 1000kHz clock rate, refer to Figure 45 (QSFP-DD-Hardware-rev5p0)

InitMode, ResetL and ModSelL

IntL

VIL

-0.3

0.8

V

VIH

2

VCC+0.3

V

|Iin|

360

uA

0V<Vin<Vcc

VOL

0

0.4

V

IOL=2.0mA

VOH

VCC-0.5

VCC+0.3

V

10k ohms pull up to Host Vcc

ModPrsL

VOL

0

0.4

V

IOL=2.0mA

VOH

ModPrsL can be implemented as a short-circuit to GND on the module

Dimensions25.3.21 1

Ordering Information

Part No.

Specification

Application

Pack

Rate

Tx/RX

Pout

Top

Reach

Others

FTQD-4H-ZR

QSFP-DD

400G1

ICTR

-10~-6dBm

0¡«75¡æ

450km1

DDM/ RoHS

400G ZR+















大宝娱乐 | F-tone Networks

ÆóÒµÓÊÏ䣺 sales@f-tone.com
ÆóÒµÊÖ»ú£º19081343401
ÆóÒµµç»°£º028-85255257
ÆóÒµ´«Õ棺028-85977702

±¾²úƷΪFT-WJϵÁУ¬½öչʾ²¿·Ö²ÎÊý£¬ÈôÓÐÐèÒª£¬ÇëÄúÁªÏµ大宝娱乐¡£
×¢£º±¾²úÆ·ÓÐÌìϲú»¯ÐͺſÉÑ¡

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.

Ììϲú»¯¹âÄ£¿é CFP2¹âÄ£¿é JYSK¹âÏËÅþÁ¬Æ÷ ˼¿Æ¹âÄ£¿é Marconi¹âÄ£¿é Test Equipment & Others ¹âÏË·¨À¼ÊÊÅäÆ÷
SFPÌìϲú¹âÄ£¿é CFP4¹âÄ£¿é J599IIIµçÅþÁ¬Æ÷ ˼¿ÆFE SFP ²©´ï¹âÄ£¿é ±£Æ«¹âÆ÷¼þ ¹âÏËÌøÏß&βÏË
1x9Ììϲú¹âÄ£¿é CFP8 400Gbps S6¾ØÐÎÅþÁ¬Æ÷ ˼¿ÆSFP+¹âÄ£¿é Íø¼þ¹âÄ£¿é In-line Depolarizer FTTAÀ­Ô¶»ùÕ¾¹âÏËÌøÏß
ÌØÖÖ¹âÄ£¿é CDFP 400Gbps S7¾ØÐÎÅþÁ¬Æ÷ ˼¿ÆXFP¹âÄ£¿é Nortel¹âÄ£¿é In-line Polarizer MPO/MTP¸ßÃܶÈϵÁÐ
25G~400G¸ßËÙ¹âÄ£¿é MicroQSFP¹âÄ£¿é GYM¹âÏËÅþÁ¬Æ÷ ˼¿ÆCFP¹âÄ£¿é Moxa¹âÄ£¿é IPBC/S ¾üÓÃÒ°Õ½·ÀË®¹âÏËÌøÏß
200km³¬³¤¾à¹âÄ£¿é DSFP¹âÄ£¿é J599III¹âÏËÅþÁ¬Æ÷ ˼¿ÆQSFP-DD ¹âÄ£¿é º£¿µÍþÊÓHIKVISION¹âÄ£¿é PBC/S ÌØÖÖ¹âÏ˹âÀÂ
5GÒÆ¶¯Í¨Ñ¶¹âÄ£¿é FT-61¹âÄ£¿é Ë®ÃܹâÀÂÅþÁ¬Æ÷ ˼¿ÆQSFP+¹âÄ£¿é McAfee¹âÄ£¿é PM BPF ÌØÖÖÏßÀÂ×é¼þ
SFP¹âÄ£¿é OLT¹âÄ£¿é ¹âÏËÅþÁ¬Æ÷ת½ÓÆ÷ ˼¿ÆGE SFP SMCÖǰî¹âÄ£¿é PM Circulator ͨÓùâÀ¹âÏËÌøÏß
1.25G SFP ONU¹âÄ£¿é FT-A4ϵÁÐÅþÁ¬Æ÷ ˼¿ÆSFP OC3 °²»ª¸ßAvago¹âÄ£¿é PM Collimator MXC? ¶àо¹âÀÂ×é¼þ
CWDM SFP PLCC¹âÄ£¿é USB¹âÏËÑÓÉìÏß Ë¼¿ÆSFP OC12 °²»ª¸ßAvago 1x9¹âÄ£¿é PM Coupler PRIZM? LIGHTTURN?×é¼þ
DWDM SFP RJ¹âÄ£¿é HDMI ˼¿ÆSFP OC48 °²»ª¸ßAvago SFF¹âÄ£¿é PM CWDM ¹âÏË»úÏä
BIDI-SFP SFF¹âÄ£¿é ÌØÖÖµçÅþÁ¬Æ÷ ˼¿ÆGBIC¹âÄ£¿é °²»ª¸ßAvago SFP¹âÄ£¿é PM DWDM SMA-ÌØÊâÏËоϵÁÐ
SGMII SFP SNAP12¹âÄ£¿é Ô²ÐÎÅþÁ¬Æ÷ ˼¿ÆX2¹âÄ£¿é °²»ª¸ßAvago QSFP28 ¹âÄ£¿é PM Faraday mirror ÌØÊâÌÖÂÛϵÁÐ
Video SFP¹âÄ£¿é USOT¹âÄ£¿é ¾ØÐεçÅþÁ¬Æ÷ ˼¿ÆXENPAK¹âÄ£¿é °²»ª¸ßAvago QSFP+¹âÄ£¿é PM Fiber mirror îø×°ÏµÁÐ
Copper SFP X2¹âÄ£¿é ÌØÖÖ¹âÏ˹âÀ »ªÈý¹âÄ£¿é °²»ª¸ßAvago SNAP12¹âÄ£¿é PM Filter Coupler ¹âñîºÏÆ÷Coupler
µÍ¹¦ºÄSFP Xenpak¹âÄ£¿é ÌØÖÖ¹âÏË »ªÈýSFP °²»ª¸ßAvago ÆäËû¹âÄ£¿é PM Fused Coupler ƤÏËÌøÏßϵÁÐ
SFP+¹âÄ£¿é ¹âµç±àÂëÆ÷Ä£¿é ¹âÏËÆ÷¼þ »ªÈýSFP+ °²»ª¸ß Embedded¹âÄ£¿é PM FWDM ´óоÊýϵÁÐ
CWDM SFP+ ¹âÄ£¿é²âÊÔ°å ÌØÖÖ¹âÀ¼°¹âÀÂ×é¼þ »ªÈýSFP28 ¹âÄ£¿é °²»ª¸ßFiber Optics¹âÄ£¿é PM Isolator »ØÂ·ÌøÏßϵÁÐ
DWDM SFP+ ¹âÄ£¿éÁý×Ó×ù×Ó ¹âź »ªÈýQSFP+¹âÄ£¿é Industrial Transmitters and Receivers PM Isolator WDM ±£Æ«¹âÏËϵÁÐ
BIDI SFP+ DAC ¸ßËÙÏßÀ ±ê×¼¹âñî »ªÈýQSFP28 ¹âÄ£¿é Optical Transceivers PM PLC ¹âͨѶ×é¼þ
Tunable SFP+ ¹âÏË»¬»·|¹âµç»¬»· SMA²âÊÔÏßÀ »ªÈý CFP¹âÄ£¿é ·Éͨ¹âÄ£¿é PM Tap Isolator ¹â¸ôÀëÆ÷isolator
16GFC SFP+ ¹âÀ³µ OSA »ªÈý CXP¹âÄ£¿é Finisar¹âÄ£¿é PM Tap Isolator WDM ÆäËü¹âÆ÷¼þ
25GE SFP+ ¾üÆ·¼¶DIN¹âÄ£¿é PON BOSA »ªÈý CX4¸ßËÙµçÀ ·ÆÄáÈøFinisar SFF¹âÄ£¿é PM VOA ¿Éµ÷Â˲¨Æ÷
32GFC SFP+ ËÜÁϹâÏËÄ£¿é Pigtailed PD »ªÈýXFP yellobrik SDI¹âÄ£¿é ÆäËü±£Æ«Æ÷¼þ ¿Éµ÷Ë¥¼õÆ÷
SFP28¹âÄ£¿é Ìæ»»°²»ª¸ß¹¤ÒµµçÁ¦¹âÄ£¿é RFoG BOSA »ªÈýGE SFP ÂÞ¿ËΤ¶ûAB¹âÄ£¿é ¹â·Ö·Æ÷ À­×¶ñîºÏÆ÷
SFP56¹âÄ£¿é ¼æÈݹú²ú»¯Ìæ»»°²»ª¸ß¹âñî TO-CAN »ªÈýFE SFP Â޽ܿµ¹âÄ£¿é FBTÀ­×¶·Ö·Æ÷ ÎÞÔ´¹âÆ÷¼þ
SFP-DD¹âÄ£¿é É䯵¹âÄ£¿é ¹âÏËζȴ«¸ÐÆ÷ »ªÈýSFP STM-4 ÑлªAdvantech¹âÄ£¿é PLC ¹â·Ö·Æ÷ ·¨À­µÚÐýת¾µ
QSFP¹âÄ£¿é ΢ÐͶà·¹âÄ£¿é ¹âÏËÓ¦±ä´«¸ÐÆ÷ »ªÈýSFP STM-16 Ììϲú»¯¹âÆ÷¼þ PLCÆ½Ãæ²¨µ¼¹â·Ö·Æ÷ ²¨·Ö¸´ÓÃÆ÷
QSFP+ ¹âÄ£¿é ÌØÖÖ¹âÄ£¿é ¹âÏ˼ÓËÙÂÊ´«¸ÐÆ÷ »ªÈýGBIC¹âÄ£¿é FT-XSϵÁР¹ú²ú»¯°ëµ¼Ìå¹â·Å´óÆ÷ ¹â¿ª¹Ø AWG DWDM²¨·Ö¸´ÓÃÆ÷
QSFP28¹âÄ£¿é HPC²¢ÐйâÄ£¿é ¹âÏßѹÁ¦´«¸ÐÆ÷ »ªÈýBIDI¹âÄ£¿é ¹âÏËÕóÁÐϵÁР̽²âÆ÷ Fused WDM²¨·Ö¸´ÓÃÆ÷
QSFP56¹âÄ£¿é LC-RJ³¬Ð¡Ð͵¥Â·¹âÄ£¿é ¹âÏËÎ»ÒÆ´«¸ÐÆ÷ »ªÈýXENPAK¹âÄ£¿é ¸ßËÙÄ£¿é΢ÅþÁ¬ ¹â¹¦ÂÊ¼Æ FWDM²¨·Ö¸´ÓÃÆ÷
QSFP112 400G¹âÄ£¿é LCC48¹âÄ£¿é ¹âÏËÓ¦Á¦´«¸ÐÆ÷ »ªÈýEPON OLT SFP Ïà¹ØÍ¨Ñ¶¹âÅþÁ¬ È«¹âÏËÏàλÀ­ÉìÆ÷ Mini΢ÐÍ´Ö²¨·Ö¸´ÓÃÆ÷
QSFP224¹âÄ£¿é LC³¬¶ÌÐ͹âÄ£¿é ¹âÏË´«¸ÐÆÊÎöÒÇ Öк½¹âµç¹âÄ£¿é ¹è¹â×ÓÆ÷¼þ¹âÁ´½Ó ¹âÏË×¼Ö±Æ÷ ¹â·Ö²å¸´ÓÃÆ÷
QSFP-DD¹âÄ£¿é SNAP12¹âÄ£¿é ¹âÏËÂþÑÜʽ²âÎÂÖ÷»ú ÖÐÐ˹âÄ£¿é Bio-Medical Equipment ¹âË¥¼õÆ÷ϵÁÐ ÆäËüÖÖÀನ·Ö¸´ÓÃÆ÷²úƷϵÁÐ
QSFP-DD800¹âÄ£¿é ΢Ð͹âÄ£¿é ¹âÏ˲¼ÀïÔ¨ÐźŽâµ÷ÒÇ Èñ½Ý¹âÄ£¿é Components for Fiber Laser ¹âÆ«Õñ¿ØÖÆÆ÷ ÷缯²¨·Ö¸´ÓÃÆ÷
OSFP 400Gbps ΢ÐͿɲå°ÎBGA¹âÄ£¿é ÂþÑÜʽ¹âÏËÉùÕñÐźŽâµ÷ÒÇ »ÝÆÕ¹âÄ£¿é Components for Fiber sensing ¹âÔ´ ´Ö²¨·Ö¸´ÓÃÆ÷
OSFP 800G¹âÄ£¿é ±íÌùʽµ¥Â·¹âÄ£¿é Camera Link ÉñÖÝÊýÂë¹âÄ£¿é Components for Optical Network ¹â»·ÐÐÆ÷Circulator WDMÄ£¿é
OSFP 1.6T¹âÄ£¿é ÌØÖÖ¹âÏËÅþÁ¬Æ÷ ¹âÄ£¿é֪ʶ Juniper¹âÄ£¿é EDFA¹âÏË·Å´óÆ÷ ¹âÏËÑÓ³ÙÏß Â˲¨Æ÷
HSFP 1.6T~12.8T¹âÄ£¿é J599¹âÏ˲åÍ·²å×ù »ªÎª¹âÄ£¿é Extreme¹âÄ£¿é ¹âÏË´«¸ÐÆ÷ ɫɢÅ⳥ģ¿é µûÐμ¤¹âÆ÷
XFP¹âÄ£¿é ODC¹âÏËÅþÁ¬Æ÷ϵÁÐ »ªÎªGE SFP Brocade¹âÄ£¿é High power Component ¹âÏË·Å´óÆ÷ ¹âñîºÏÆ÷&·Ö·Æ÷
CWDM XFP ÆäËûÌØÖÖ¹âÏËÅþÁ¬Æ÷ »ªÎªQSFP+¹âÄ£¿é D-Link¹âÄ£¿é HP In-line Polarizer ÎÞÔ´´«Êäת»»Æ÷ ¹âÏË»·ÐÎÆ÷&·¨À­µÚÐýת¾µ
DWDM XFP Ò°Õ½¹âÏËÅþÁ¬Æ÷ »ªÎªSFP+ ºÕ˼Âü¹âÄ£¿é HP Isolator ¹âÏ˼¤¹âÆ÷ ¹âÏ˸ôÀëÆ÷&²¨·Ö¸´ÓÃÆ÷
BIDI XFP ÌØÖÖ¹âµçÅþÁ¬Æ÷ »ªÎªQSFP28 °¢¶û¿¨ÌØÀÊѶ¹âÄ£¿é HP PBC/S ¹âµ÷ÖÆÆ÷ ¹âÏË·ÖÊøÆ÷&ºÏÊøÆ÷£¨PBS/PBC£©
1x9¹âÄ£¿é J599IIIÆéá«Æµ»ì×°ÅþÁ¬Æ÷ »ªÎªFE SFP Allied Telesis¹âÄ£¿é Pump Combiner ¹âµç̽²âÆ÷ ¹âÏ˹âÕ¤
CSFP¹âÄ£¿é NGC¹âÏËÅþÁ¬Æ÷ »ªÎªXFP Foundry¹âÄ£¿é HP Circulator ¹âÏËÆ«Õñ ¸ßËÙÏßÀÂ
CSFP+10G¹âÄ£¿é J599A6¹âÏËÅþÁ¬Æ÷ »ªÎªSFP OC12 Force10¹âÄ£¿é Pump laser protector ¹âÏËÂ˲¨Æ÷
CXP¹âÄ£¿é GYMB¹âÏËÅþÁ¬Æ÷ »ªÎªGBIC¹âÄ£¿é Blade¹âÄ£¿é Hybrid for EDFA ͬÖἤ¹âÆ÷
CFP¹âÄ£¿é J599III¹âµçÅþÁ¬Æ÷ »ªÎªSFP STM16 Linksys¹âÄ£¿é Test Equipment & Others ͬÖáµçÀÂ

028-85255257 | sales@f-tone.com

±ê׼ЭÒé¹âÄ£¿é²úÆ·

¼æÈÝЭÒé¹âÄ£¿é

ÆäËüÖÖÀà¹âÆ÷¼þ

ÊÖÒÕÖ§³Ö

ÍøÕ¾µØÍ¼
