Description
F-tone Networks QSFP+ to 8 x LC Connector Breakout Optical Cable are a high performance, low power consumption, long reach interconnect solution supporting 40G Ethernet, fiber channel and PCIe. It is compliant with the QSFP MSA and IEEE P802.3ba 40GBASE-SR4.
F-tone Networks QSFP+ Breakout Cable is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 10Gb/s, providing an aggregated rate of 40Gb/s.
QSFP+ Breakout Cable are suitable for short distances and offer a highly cost-effective way to connect within racks and across adjacent racks. These breakout cables connect to a 40G QSFP+ port of a switch on one end and to four 10G SFP+ Transceivers of a switch on the other end.

Features
¡ñ Full duplex 4 channel 850nm parallel active optical cable
¡ñ Transmission data rate up to 10.3Gbit/s per channel
¡ñ SFF-8436 QSFP+ compliant
¡ñ Hot pluggable electrical interface
¡ñ Differential AC-coupled high speed data interface
¡ñ 4 channels 850nm VCSEL array
¡ñ 4 channels PIN photo detector array
¡ñ Maximum link length of 300m on OM3 Multimode Fiber (MMF)and 400m on OM4 MMF
¡ñ Low power consumption
¡ñ Housing isolated from connector ground
¡ñ 3.3V power supply voltage
¡ñ RoHS 6 compliant
¡ñ Case operating temperature
     Commercial: 0 ~ +70¡æ
     Industrial: -40 ~ +85¡æ

Applications
¡ñ Infiniband transmission at 4ch SDR, DDR and QDR
¡ñ 40GBASE-SR4 40G Ethernet
¡ñ Data Centers

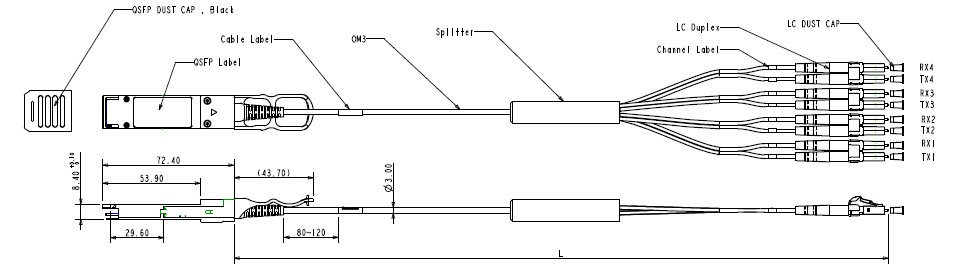

Mechanical Dimensions

Ordering information

±¾²úƷΪ25G~400G¸ßËÙ¹âÄ£¿éϵÁÐ
£¬ÈôÓÐÐèÒª
£¬ÇëÁªÏµ大宝娱乐
¡£

×¢£º±¾²úÆ·ÓÐÌìϲú»¯ÐͺſÉÑ¡
Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
