C-Band 10 GHz High Bandwidth Zero-Chirp Modulator

Description
F-tone Networks High Bandwidth Zero-Chirp FT-46-F10 modulators are based on the Mach-Zehnder Interferometer (MZI) architect ure. They are manufactured using the highly reliable titanium indiffusion technology in X-Cut, Y-Propagating LiNbO3 substrates . The FT-46-F10 is a single drive modulator designed for high bit rate advanced metro to long haul communication systems that requi res the superior performance. The FT-46-F10 modulator contains an integrated photo detector that may be used to set and lock the DC bias on the modulator as well as provide an estimate of the modulator output optical power.

Features
¡ñ Titanium-Indiffused Waveguide
¡ñ X-Cut LiNbO3
¡ñ Electro-Optic Bandwidth > 12.5 GHz
¡ñ Optical Insertion Loss < 4.5 dB
¡ñ RF V¦Ð Voltage: 5 V (typ. @ 1 kHz)
¡ñ Integrated Monitor Photodiode
¡ñ Integrated Polarizer
¡ñ Compliance with Telcordia GR-468-CORE

Applications
¡ñ External Intensity Modulation NRZ and RZ
¡ñ High Frequency RF Signal Over Fiber Optic Links
¡ñ Instrumentation

Optical and Electrical Specifications

Performance Characteristics

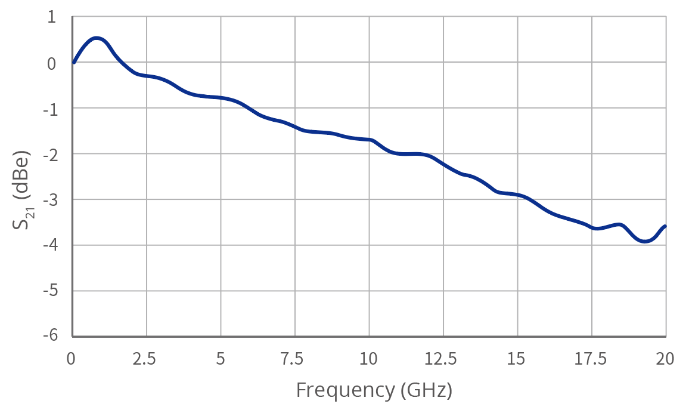

                                Electro optical response

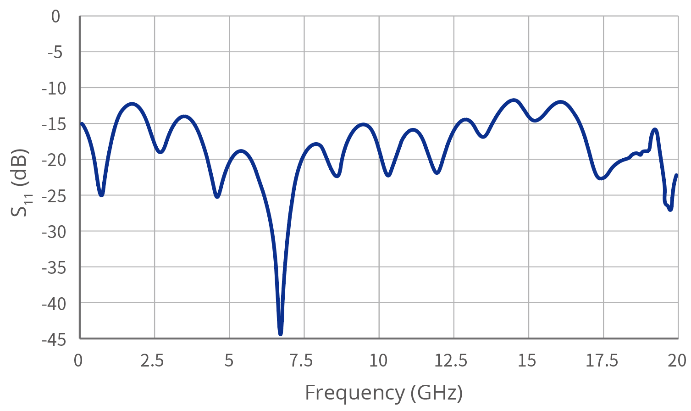

                                Electrical return loss

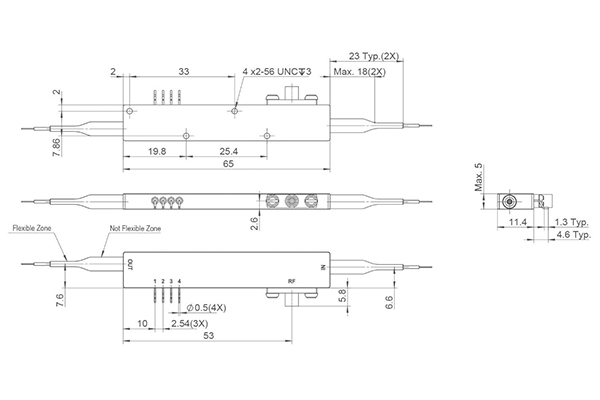

Package DimensionsAll dimensions measured in mm. L1 is fiber length with 900 ?m loose tube. L2 is length of bare fiber.
