100GBASE QSFP28 Active Electrical Loopback Module
Description
Description
The F-tone Networks FTQ2-HG-LBxx QSFP28 active electrical loopback is used for testing QSFP28 transceiver ports in board level test. By sub stituting for a full-featured QSFP28 transceiver, the electrical loopback provides a cost effective low loss method for QSFP28 port testing.
The FTQ2-HG-LBxx is packaged in a standard MSA housing compatible with all QSFP28 ports. Transmit data from the host is electrically routed (internal to the loopback module) to the receive data outputs and back to the host. Since the loopback module does not contain laser diodes, pho todiodes, laser driver or transimpedance amplifier chips, etc., it provides an economical way to exercise QSFP28 ports during R&D validation, production testing and field testing. The FTQ2-HG-LBxx provides QSFP28 power Class 1, 2, 3, or 4 loading using a customer supplied +3.3V voltage supply. Power Classes 5, 6 and 7 are available upon request.
Features
● 4 channels full-duplex transceiver modules
● Supports 100Gbps total data rate
● Low power consumption <1W
● Hot Pluggable QSFP form factor
● 3.3V power supply voltage
● RoHS 6 compliant(lead free
● Case operating temperature
Commercial: 0 ~ +70℃
Industrial: -40 ~ +85℃
Applications
● IEEE 802.3bm
● Infiniband EDR
● QSFP port/system testing

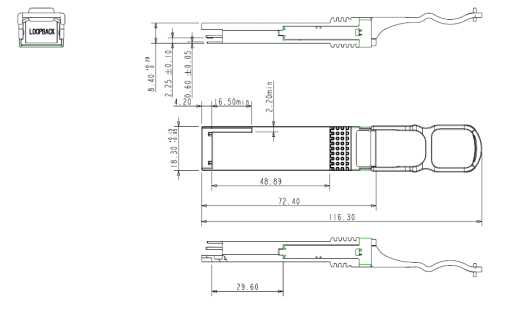

Mechanical Dimensions
Ordering information
|
Part Number |
Product Description |
|
FTQ2-HG-LB |
QSFP28, 100GBASE Active Electrical Loopback,0ºC ~ +70ºC |
|
FTQ2-HG-LBI |
QSFP28, 100GBASE Active Electrical Loopback,-40ºC ~ +85ºC |
本产品为25G~400G高速光�？橄盗�，若有需要，请联系大宝娱乐。
注：本产品有天下产化型号可选
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
