SFF2X5 Transceiver,MM1310nm,0~10M,2km

Product Description
F-tone Networks¡¯s FTAF-xxxL2-xxxx series of transceiver modules are the perfect solution for ultra-low speed communication networks.These transceiver modules support data rates up to 10Mbps. The module is fully compliant with the 2X5 standard package defined by the Small Form Factor Multi-Sourcing Agreement (MSA).These transceiver modules provides the system designer with products to RS232/RS485/RS422 fiber transmission.

Product Features
¡ñ VCSEL/FP Laser Diode Transmitter
¡ñ Up to 2Km on 62.5/125¦Ìm MMF£¬Up to 20 Km on 9/125¦Ìm SMF
¡ñ 3.3Vpower supply
¡ñ LC duplex optical interface
¡ñ LVTTL Input/ Output and LVTTL signal detect
¡ñ Class 1 Laser International Safety Standard IEC 825 Compliant
¡ñ Operating case temperature range (Standard£º0 to +70¡æ) or (Industrial£º -40¡ãC to +85¡ãC)

Application
¡ñ RS232/RS485/RS422 receptacle fiber transmission
¡ñ Other optic link

Absolute Maximum Ratings
Operating of the transceiver beyond the Absolute Conditions Listed in Table 1 will degrade or damage the product. It¡¯s not implied that the product would function above the recommended operating environment, it¡¯s possible to reduce the reliability and lifetime of device if Recommended Operating Environment is exceeded (Refer to table 2)

Table 1--- Absolute Maximum Conditions

Table 2--- Recommended Operating Environment and Electrical Characteristics

Note
1.standard level
2.industrial level
3.Not recommended wave soldering.

Optical Parameters
Table 3--- FTAF-85L2-02xx Transceiver Optical Characteristics(Ambient Operating Temperature Ta=+25¡À5¡ãC, VCC = 3.3¡À0.2V)

Note1£ºThe optical power is launched into 62.5/125¦Ìm MMF.
Note2£ºWith 10Mbps. If keep 0 1 level duty ratio of 45%:55%, sensitivity control as ¡Ü- 12dBm.

Table 4--- FTAF-M13L2-02xx Transceiver Optical Characteristics
(Ambient Operating Temperature Ta=+25¡À5¡ãC, VCC = 3.3¡À0.2V)

Note1£ºThe optical power is launched into 62.5/125¦Ìm MMF.
Note2£ºWith 10Mbps. If keep 0 1 level duty ratio of 45%:55%, sensitivity control as ¡Ü- 14dBm.

Table 5--- FTAF-13L2-20xx Transceiver Optical Characteristics
(Ambient Operating Temperature Ta=+25¡À5¡ãC, VCC = 3.3¡À0.2V)

Note1£ºThe optical power is launched into 9/125¦Ìm SMF.
Note2£ºWith 10Mbps. If keep 0 1 level duty ratio of 45%:55%, sensitivity control as ¡Ü- 14dBm.

Electrical Parameters
Table 6--- Transceiver Electrical Characteristics (Ambient Operating Temperature Ta=+25¡À5¡ãC, VCC = 3.3¡À0.2V)

Note1£º(LV)TTL signal detect

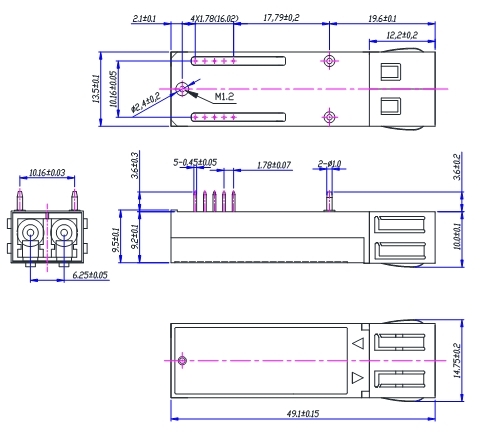

Module Outline Drawing£¨Units in mm)

Order Information
