SFP Transceiver,MM,1310nm,155M,2km

Features
¡ñ Up to 155Mbps data rate
¡ñ 2Km Reach for 50/125um (550MHz.km)
¡ñ Duplex LC receptacle optical interface compliant
¡ñ Single +3.3V power supply
¡ñ DDMI function available with internally calibrated mode
¡ñ Hot-pluggable
¡ñ Receiver loss of signal output
¡ñ Transmitter disable input
¡ñ International Class1 laser safety certified
¡ñ Operating temperature range:
     Commercial: -5¡ãC~70¡ãC
     Industrial: -40¡ãC~85¡ãC
¡ñ RoHS Compliant

Application
¡ñ Gigabit Ethernet
¡ñ 1x Fiber Channel
¡ñ Switch to Switch Interface
¡ñ Other Optical Links

Standard
¡ñ Compliant with SFP MSA (INF-8074i)
¡ñ Compliant with SFF-8472
¡ñ Compliant with IEEE 802.3z

Absolute Maximum Ratings

Recommended Operating Conditions

Electrical Characteristics

Electrical Characteristics

Optical Transmitter Characteristics

Optical Receiver Characteristics

Note 1. Measured with PRBS27-1 pattern, @1.25Gbps, ER=9dB, BER=1x10-12 .

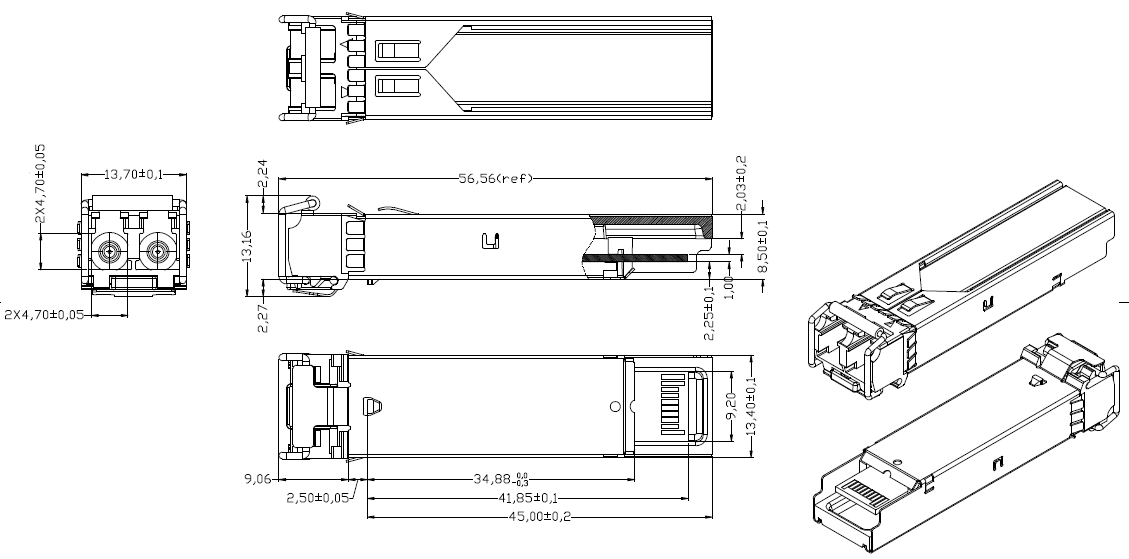

Package Outline
Dimensions are in millimeters. All dimensions are ¡À0.1mm unless otherwise specified. (Unit: mm)

Ordering Information

大宝娱乐 | F-tone Networks

ÆóÒµÓÊÏ䣺sales@f-tone.com
ÆóÒµÍøÕ¾£ºwww.f-tone.com
ÆóÒµÍøÕ¾£ºwww.sfpgmk.com
ÆóÒµµç»°£º028-85255257
ÆóÒµ´«Õ棺028-85977702

×¢£º±¾²úÆ·ÓÐÌìϲú»¯ÐͺſÉÑ¡
±¾²úƷΪFT-WLϵÁУ¬½öչʾ²¿·Ö²ÎÊý£¬ÈôÓÐÐèÒª£¬ÇëÁªÏµ大宝娱乐
¡£
Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
